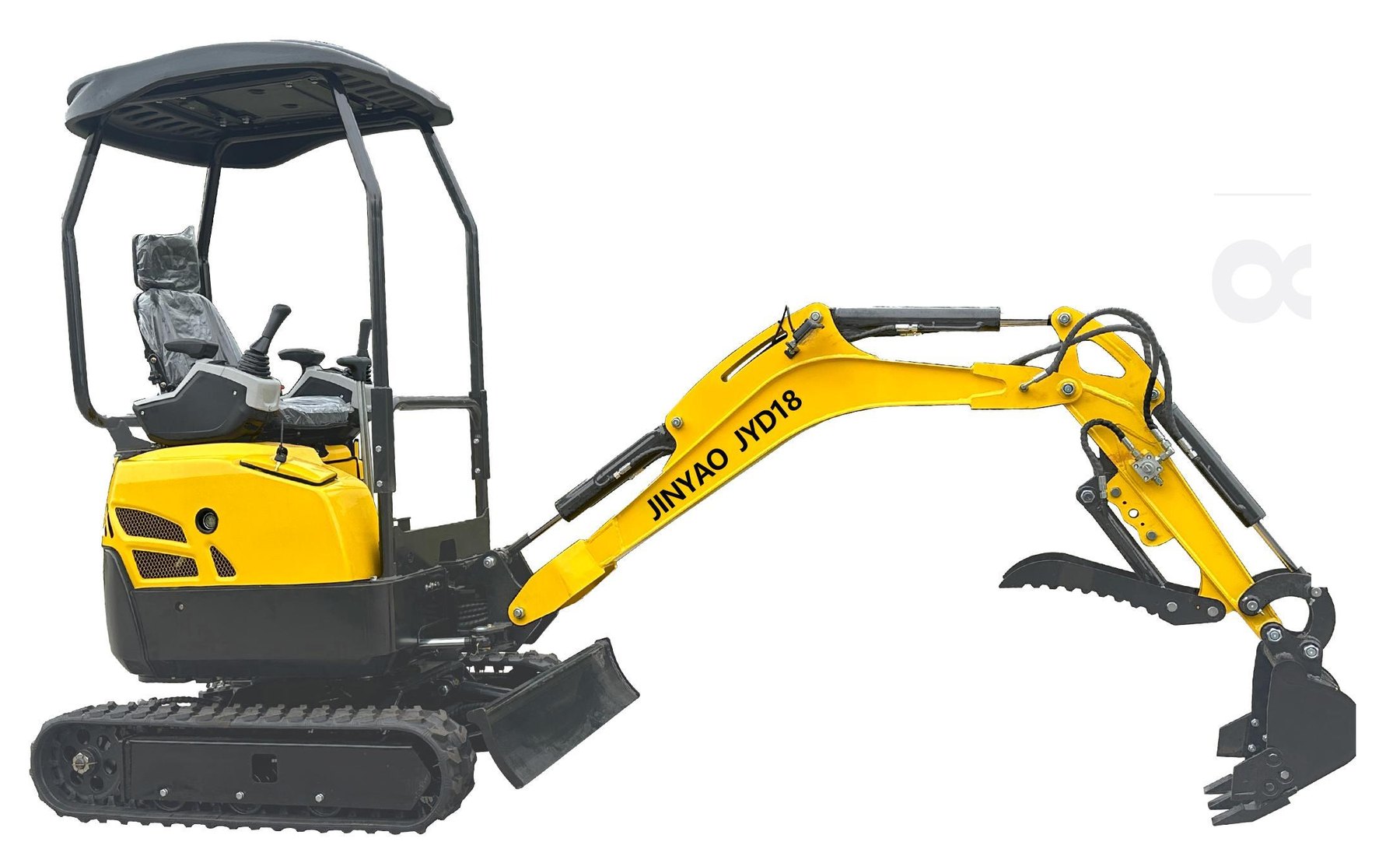

Excavator JYD18
JYD18Construction Machinery
Mini excavator powered by Kubota D722 engine (20.3hp) with precise pilot control, max digging height 3200mm — suitable for landscaping, municipal works and confined-site construction.
Specifications
| Engine Brand | Kubota D722 |
|---|---|
| Displacement | 0.719L |
| Max Power (kw/rpm) | 14.9/3600 |
| Horsepower | 20.3hp |
| Bucket Digging Force | 18kn |
| Travel Speed | 0-3km/h |
| Gradeability | 32° |
| Max Digging Height | 3200mm |
| Max Dumping Height | 2300mm |
| Max Digging Depth | 1800mm |
| Track Width | 180mm |
| Track Ground Contact Length | 1300mm |
| Fuel Type | Diesel |
| Fuel Consumption | 275g/kwh |
| Fuel Tank Capacity | 5.5L |
| Engine Oil Capacity | 5L |
| Overall Dimension (L*W*H) | 3250*1100*2300mm |
| Thumb Clamp | Hydraulic with Stop Valve |
| Control System | Pilot Control |
| Bucket Capacity | 0.05m³ |
| Travel Motor | Optional Built-in Single-Speed Travel Motor |
Key features:
1. Branded premium engine with stable performance and low fuel consumption.
2. Compact structure and flexible handling, ideal for confined narrow spaces.
3. High-grade carbon steel with sandblasting and powder-coating finish for excellent rust resistance.
4. User-friendly operation with highly accurate and controllable movements.
